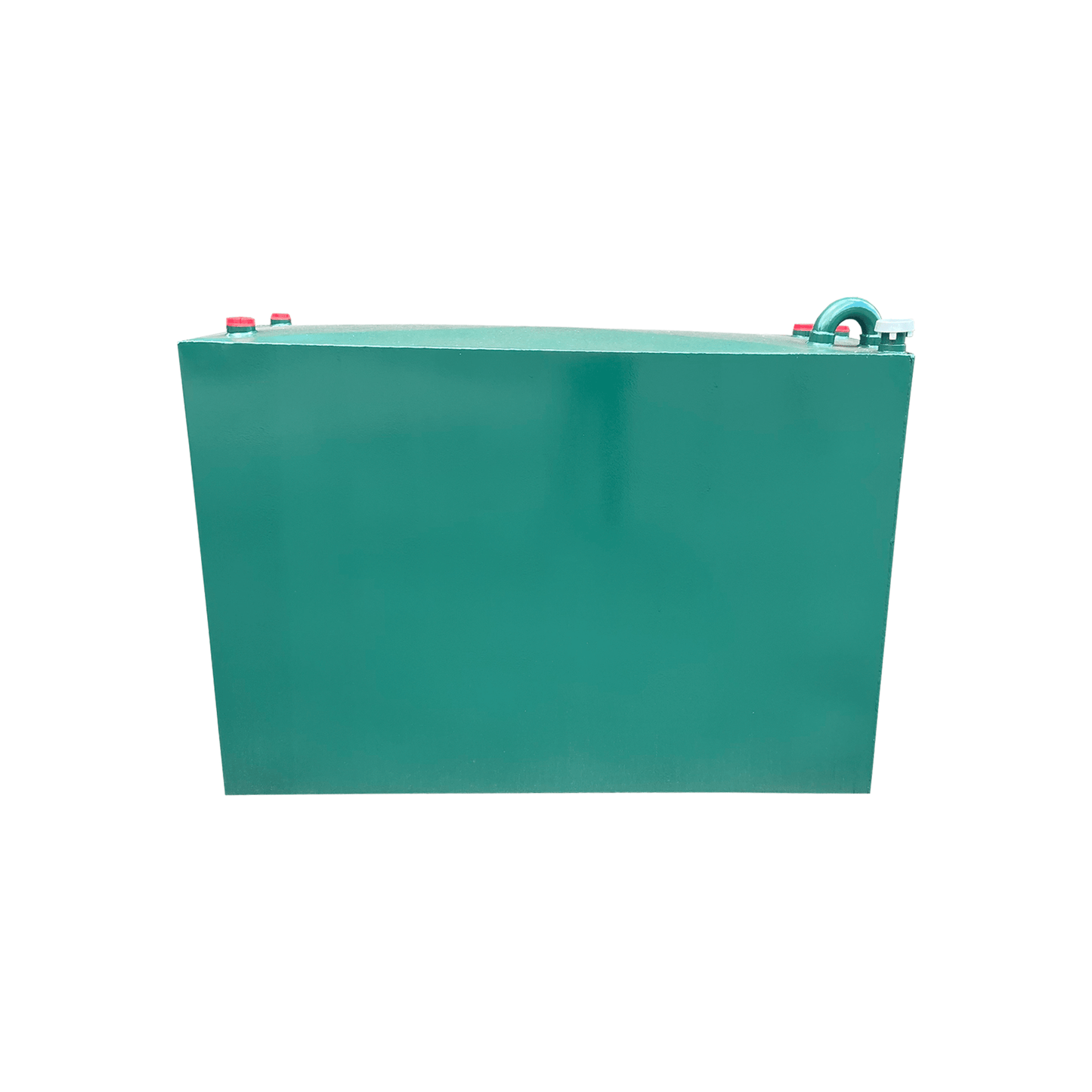

This 1100 litre steel bunded oil tank is designed to provide safe heating oil storage for domestic properties where access space may be limited. Its narrow footprint allows easier positioning while still delivering useful fuel capacity. The double-wall design helps provide additional containment for residential installations.
What This Tank Is
This tank is a double-skinned steel oil storage unit designed for kerosene heating systems. The inner tank stores the fuel while the surrounding bund provides secondary containment in the event of a leak. Built from durable steel and finished with protective coatings, it functions as a steel bunded heating oil tank designed for long-term outdoor use.
Compliance & Installation Considerations
With a width of just 610mm, this tank is designed to pass through many standard garden gateways and narrow access routes. This makes it particularly suitable where installation space is restricted or where replacing an older tank located behind a property. Its bunded construction also makes it suitable where a domestic oil tank replacement requires secondary containment.
Capacity & Storage Suitability
The tank provides 1100 litres of storage capacity, offering a practical option for smaller households or properties with moderate heating oil demand. This size provides a useful increase in storage over smaller models while still maintaining a manageable footprint. For many residential properties, an 1100 litre oil tank offers a balance between capacity and installation flexibility.
Construction & Durability
Manufactured from 2mm thick steel, the tank is coated with rust inhibiting primer to help protect the surface from environmental exposure. The external finish consists of primer and gloss coating, while the interior remains self colour. The bund is designed to contain 110% of inner tank volume, helping provide additional environmental protection for installations requiring a slimline oil tank for narrow access layout.
Technical & Manufacturing Information
Our tanks are made from HRMS BS EN10025-S275JR. They are all pressure tested well in excess of the requirements of B.S.799 by very experienced welders. Tank comes with CE mark as standard. Outer bund designed to contain 110% of inner tank volume. Inner tank tested to 1psi and outer bund tested sound.
Key Features
- Capacity: 1100 litres
- Dimensions: 1830mm Long x 610mm Wide x 1250mm High
- Constructed from 2mm thick steel
- 2 x lifting lug
- Mounted on 50mm steel channel bearers
- Painted externally one coat primer, one coat gloss – green bs14c39
- Internally lined – self colour
- 50mm tank to bund vent
- 2 x 50mm connections
- 40mm gauge connection
- 25mm tank suction drain
- 25mm bottom outlet
- 50mm vent with aluminium cowl (outer bund)
- 40mm gauge connection (outer bund)
- 10-year warranty
Fittings Included
- 2 x 50mm sockets
- 2 x 40mm gauge/alarm socket
- 1 x 50mm cavity vent & cowl
- 1 x 25mm suction drain
