Description

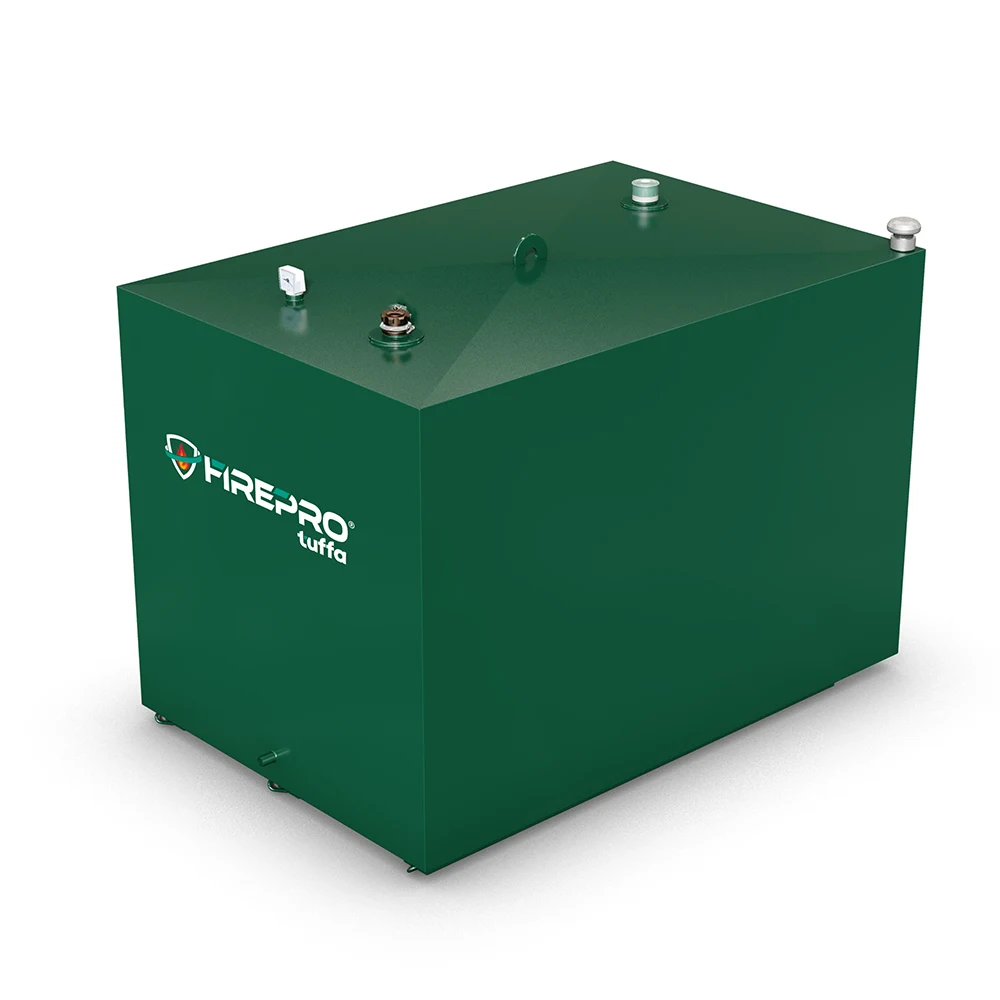

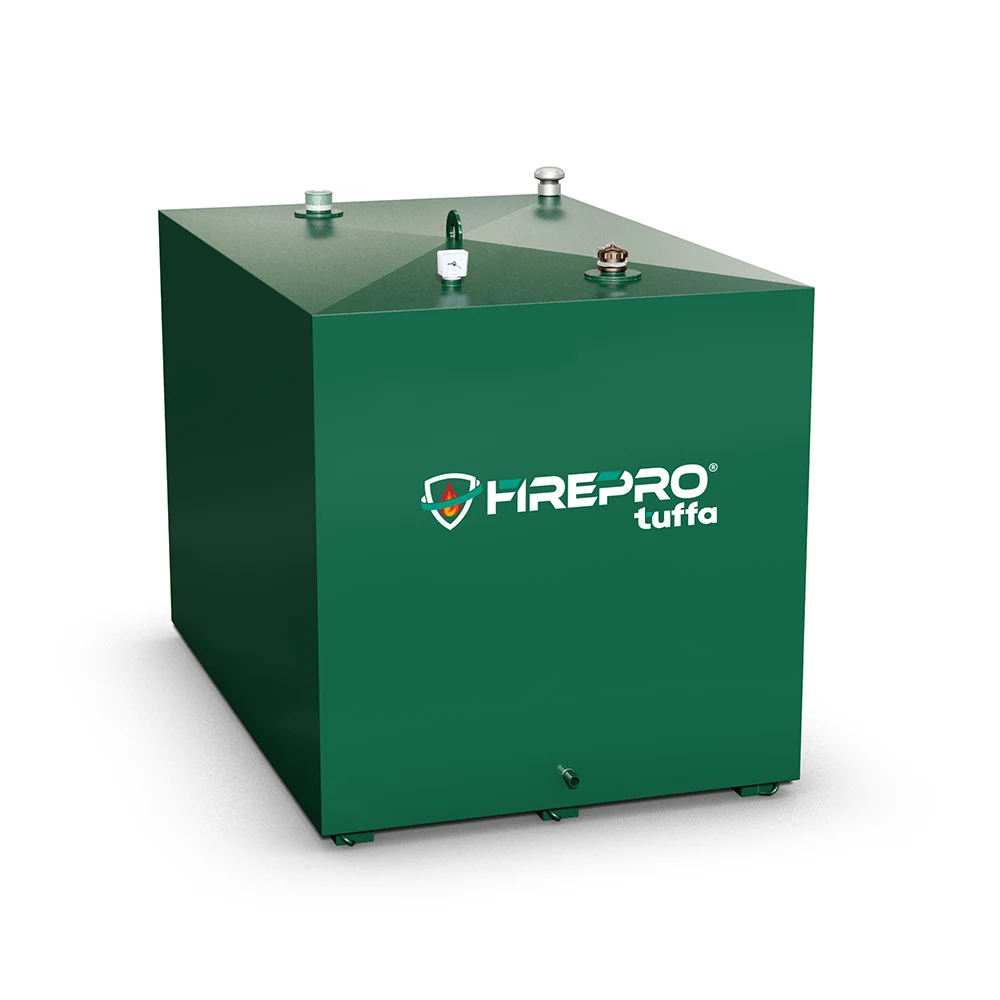

Manufactured on-site from high quality mild steel, the 2300 Litre Steel Bunded Fire Protected Tuffa Oil Tank offers a durable, long-term solution for domestic and commercial heating oil storage where space is limited or fire safety regulations apply.
Fire Protected Installation Solution
This fire rated oil storage tank provides a compliant alternative where oil tanks are positioned within 1.8 metres of buildings or structures. The integrally fire rated system removes the need for external fire barriers or costly additional building work while meeting the functional requirements of UK Building Regulations.
Space Saving Steel Bunded Design
Designed for locations where external space is restricted, this steel bunded oil tank can be installed behind or within outbuildings without compromising on safety or capacity. The compact footprint allows efficient use of available installation areas whilst maintaining full bund protection.
Integrated Bund Protection
These bunded heating oil tanks are fabricated with both a primary inner tank and outer bund to provide a minimum of 110% containment capacity. This integral bund system protects against spillage or overfilling and supports safe fuel storage for domestic and commercial applications.
Compatible With Modern Heating Fuels
This fire protected oil tank is fully compatible with HVO fuel and HVO kerosene blends, providing flexibility for future fuel requirements and helping support modern low-carbon heating systems.
Simple Installation Process
The tank fits standard prefabricated concrete bases and requires only six slabs for installation (4 at 900mm x 600mm and 2 at 600mm x 600mm). FirePro® tanks can also be signed off remotely through a four-step certification process when installed in line with guidance.
Key Features
Capacity (Litres) : 2325
Length (mm) : 1800
Width (mm) : 1200
Height (mm) : 1680
HVO Compatible : Yes
Material : Steel
Fire protection
2″ BSP fill point complete with cap and chain
Overfill prevention valve
Vent
1” BSP bottom outlet
Manual float level gauge
Electronic Watchman Sonic gauge
Central lifting eye
Channel runners
Tank fittings kit (1”-1/2″ adaptor, ball valve and filter)
Painted in RAL 6005 Green
Additional Information
Who can install and certify a fire rated oil tank?
Tuffa has partnered with national building control company Stroma and our FirePro® range can be signed off remotely using a simple four-step process.
We work with installers across the UK and in most cases can recommend someone in your area. Alternatively, we recommend an installer from APHC’s Competent Persons Scheme for our fire protected tanks. Find an APHC installer here.
If you need help finding what you’re looking for, don’t hesitate to contact our friendly sales team for more information, advice, quotations, or more information on our exclusive discounts on trade prices.
