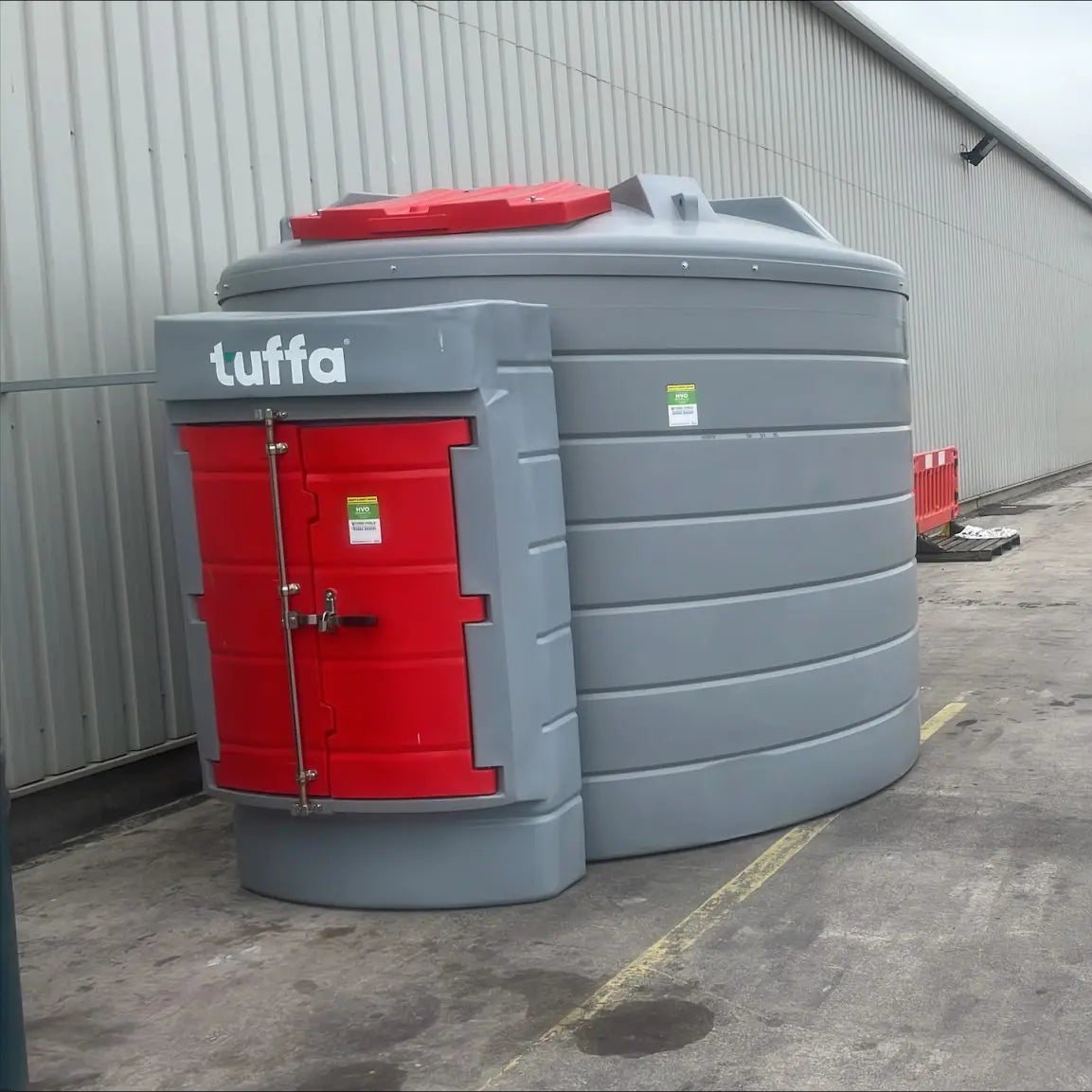

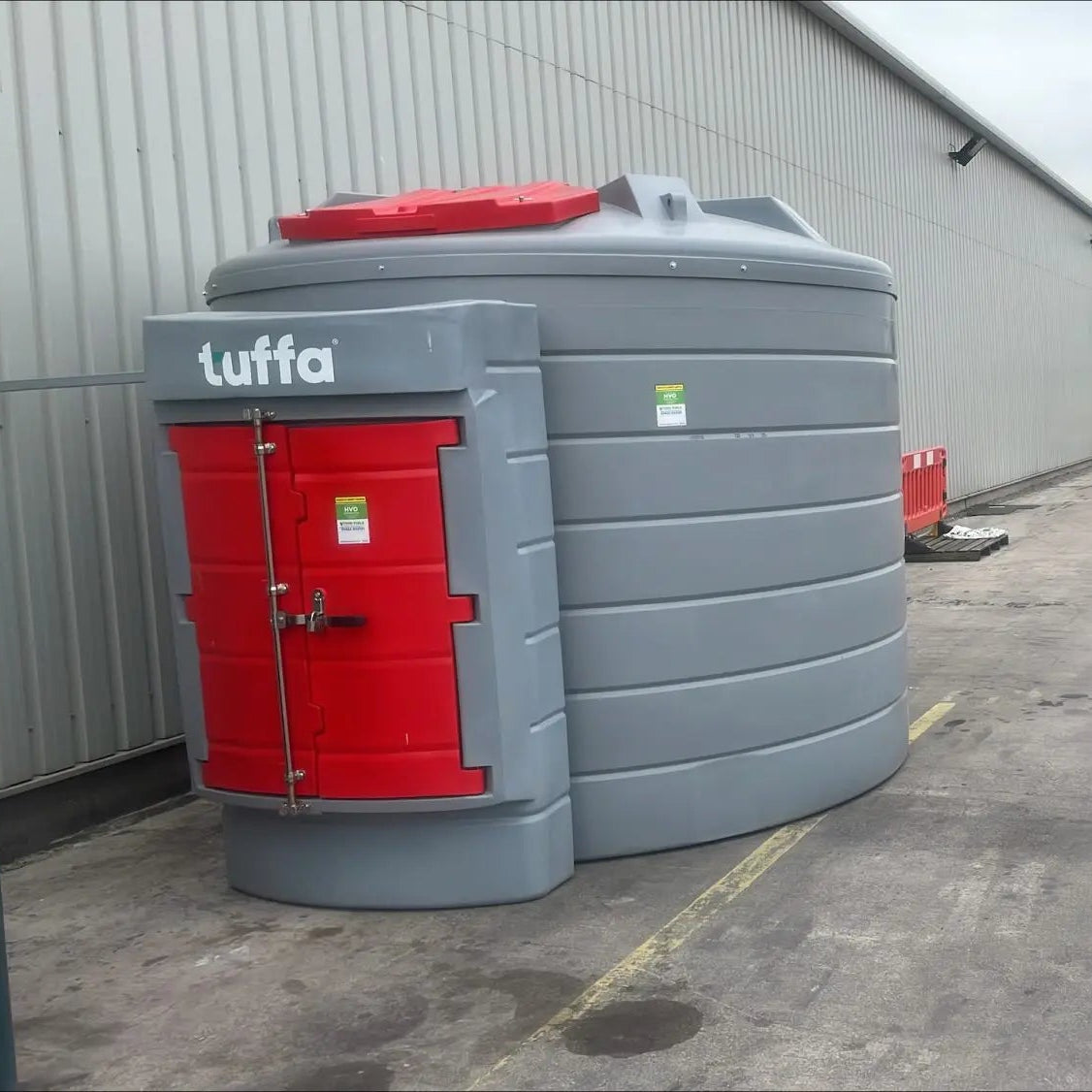

Our 10,000-litre plastic bunded diesel tank is an above-ground diesel fuel station consisting of a primary tank (which holds the fuel) surrounded by a bund fitted with a cabinet.

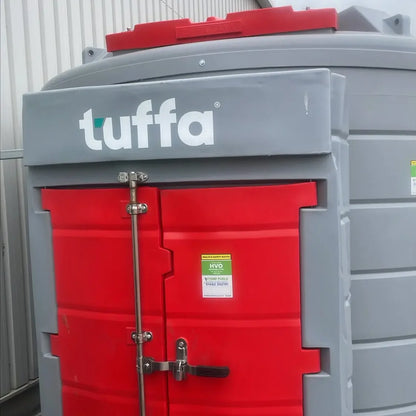

The cabinet safely houses tier-one ancillary equipment, including an external pump, K33 mechanical flowmeter, automatic shut-off nozzle and FMS gauge and alarm. Optional extras and upgrades include a fuel management system, pulse meter and high-flow pump.
The 10,000-litre plastic bunded diesel tank is complete and ready to use, requiring only a hard, flat concrete base and an electrical connection (if not choosing the 12/24V version).
This tank is compatible with white or red diesel and HVO100 or HVO diesel blends. This bunded diesel tank is safe and durable with a 20-year design life and 10-year warranty, when registered.
Visuals are for guidance only; final product details may differ.
Specification
- External pump 230V
- 6m of delivery hose
- Automatic shut-off nozzle
- K33 mechanical flowmeter
- Nozzle holster
- Control panel with key switch 230V
- 2″ BSP fill connection with cap and chain
- Overfill prevention valve
- Vent
- FMS gauge and alarm 230V
- 10-micron water and particulate filtration
- Lockable cabinet
Key benefits
- Forecourt-style dispensing and convenience
- Manufactured to prolong the usable life of diesel
- Fitted with premium ancillary equipment
- Bunded in accordance with Oil Storage Regulations
- Made from a highly durable, UV-stabilised, corrosion-resistant and recyclable polyethylene
- A range of optional extras is available to customise the tank for your site requirements
- Lockable cabinet prevents theft
- Serviceable lifespan over 20 years
- 10-year warranty when registered
- Compatible with HVO fuel and HVO diesel blends
Options
- K44 pulsed outlet flowmeter – allows connection to a separate fuel management system.
- Hose reel – a self-retracting hose reel with a 10m delivery hose.
- Pump options – 12V, 24V, and higher flow rate pumps available upon request.
*Higher flow-rate pumps may be supplied with a different nozzle size. Please contact us if you are unsure whether this will be suitable for your requirements. - Fuel management system – a fuel management system fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank.
- HDA level sensor – the fuel management system above also allows for connection to a compatible 4-20mA level probe (accurate to +/-0.5% ) to enable monitoring of the storage tank contents, including current levels and dispensed quantities, which also reports to the supplied software.
- No dispensing equipment – suitable for diesel generators or sites with existing dispensing equipment.
