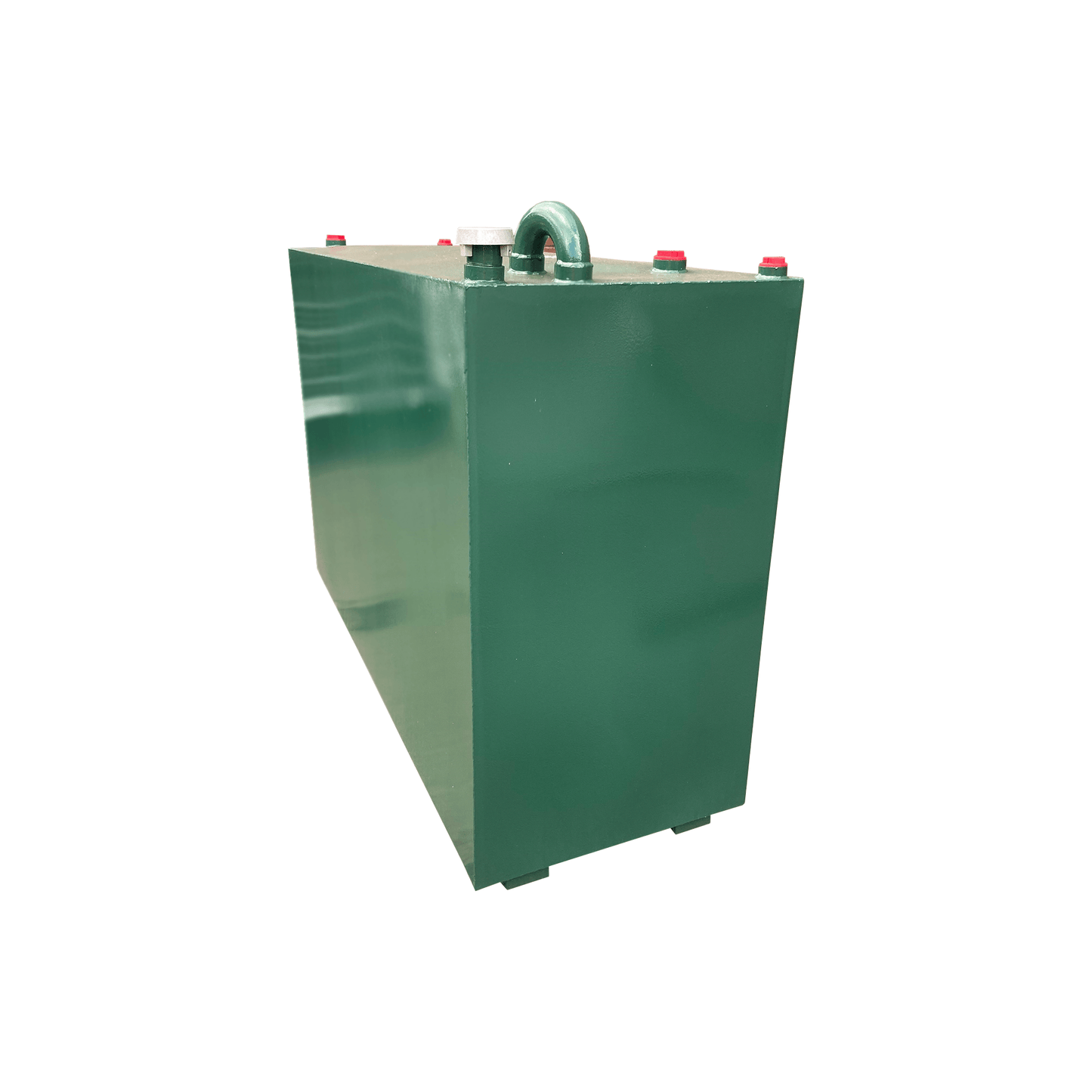

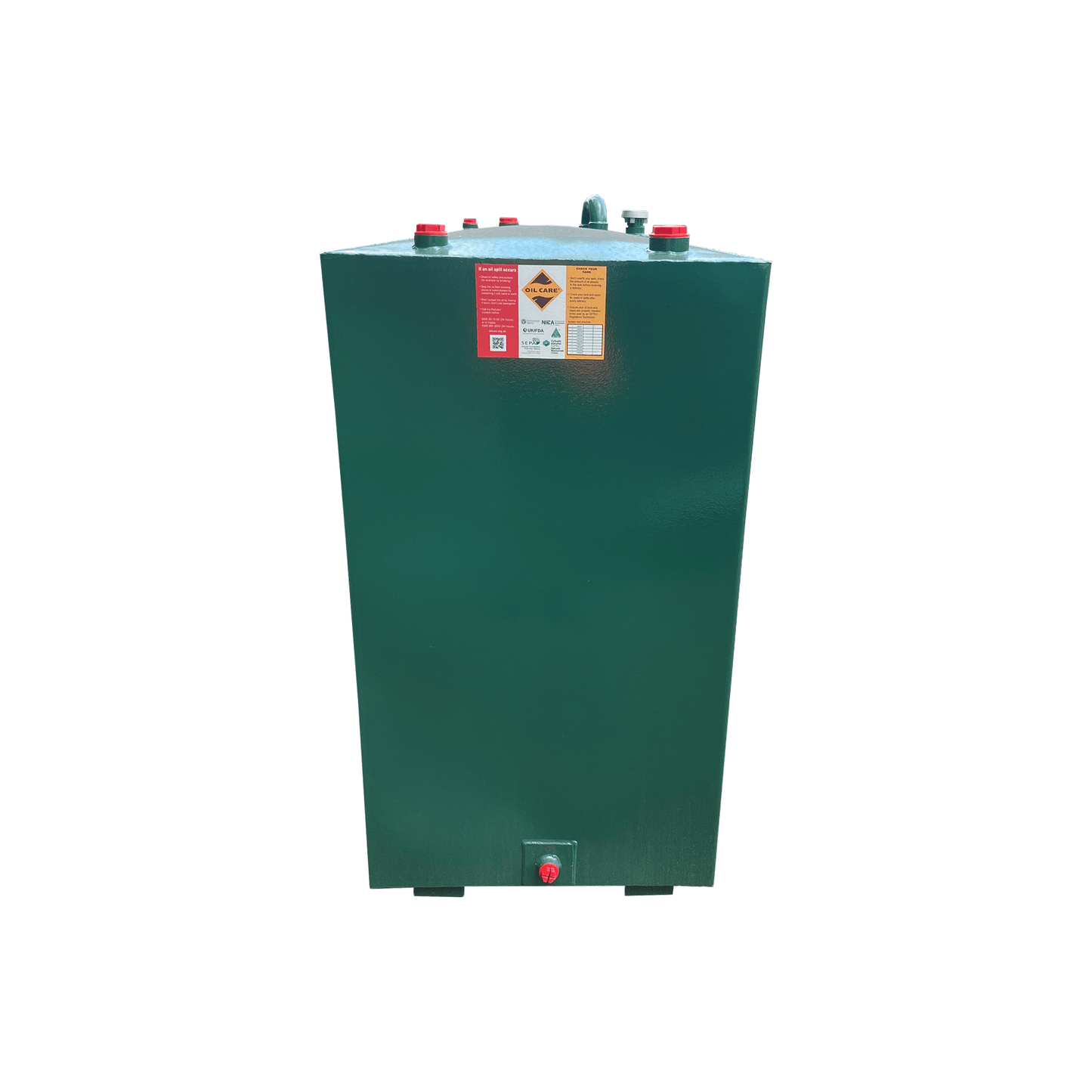

This 1350 litre steel bunded oil tank is designed for safe domestic kerosene storage in residential heating systems. Its construction provides reliable fuel containment while maintaining manageable installation dimensions. The tank is suited to properties requiring dependable oil storage without moving to larger high-capacity units.
What This Tank Is
This tank is a double-skinned steel storage system built to store heating oil safely. The inner tank stores kerosene while the outer bund provides secondary containment designed to hold potential leaks. Manufactured from durable steel and protective coatings, it functions as a bunded heating oil tank designed for residential heating installations.
Compliance & Installation Considerations
The tank is designed with installation practicality in mind, offering a width of 710mm which allows it to pass through many standard gateways and narrow access routes. This helps simplify installation at properties where access space is limited. Its double-wall design also makes it suitable when replacing older tanks, including situations where an oil tank replacement 1350 litre capacity is required.
Capacity & Storage Suitability
With a storage capacity of 1350 litres, the tank provides a practical solution for homes that require more storage than smaller entry-level tanks but do not need larger high-capacity models. For many households using oil-fired boilers, a 1350 litre oil tank offers a balance between storage capacity and manageable footprint.
Construction & Durability
Manufactured from 2mm thick steel, the tank is coated with rust inhibiting primer to help protect the exterior surface from environmental exposure. The external finish includes primer and gloss coating, while the internal lining remains self colour. The bund is designed to contain 110% of inner tank volume, providing additional protection for a steel oil tank for domestic heating installation.
Technical & Manufacturing Information
Our tanks are made from HRMS BS EN10025-S275JR. They are all pressure tested well in excess of the requirements of B.S.799 by very experienced welders. Tank comes with CE mark as standard. Outer bund designed to contain 110% of inner tank volume. Inner tank tested to 1psi and outer bund tested sound.
Key Features
- Capacity: 1350 litres
- Dimensions: 1930mm Long x 710mm Wide x 1250mm High
- Constructed from 2mm thick steel
- 2 x lifting lug
- Painted externally one coat primer, one coat gloss – green bs14c39
- Internally lined – self colour
- 50mm tank to bund vent
- 2 x 50mm connections
- 40mm gauge connection
- 25mm tank suction drain
- 25mm bottom outlet
- 50mm vent with aluminium cowl (outer bund)
- 40mm gauge connection (outer bund)
- 10-year warranty
Fittings Included
- 2 x 50mm sockets
- 2 x 40mm gauge/alarm socket
- 1 x 50mm cavity vent & cowl
- 1 x 25mm suction drain
