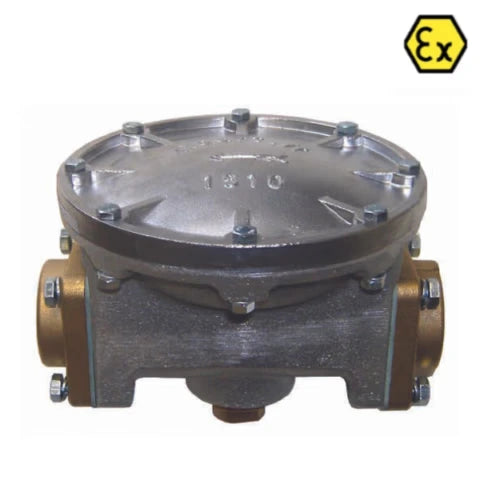

The Pressure Regulating Anti Syphon Valve for ATEX and High Flow Applications delivers dependable protection for fuel storage and dispensing systems where safety and high flow performance are essential. Suitable for installation near fuel dispensers, this fuel tank anti syphon valve provides controlled flow regulation while helping maintain system stability in challenging environments.
Protection Against Siphoning and Fuel Loss
This anti syphon fuel valve is engineered to prevent unwanted fuel movement that can result in accidental tank emptying. By controlling pressure and flow, it helps protect both the tank and the surrounding environment.
Designed for High Flow Performance
Built as a high flow pressure regulating valve, the unit supports flow rates between 84 and 200 litres per minute, making it suitable for demanding dispensing systems where consistent performance is required.
ATEX Certified for Hazardous Environments
The valve is ATEX certified for use in potentially explosive atmospheres, providing additional confidence for installations that require strict compliance and safety standards.
Easy Integration and Reliable Operation
Designed for horizontal installation near the dispenser, the valve supports systems with a maximum liquid column of 6 metres. A stainless steel inlet strainer and wire mesh filter help maintain clean fuel flow and long-term reliability.
Key Features
-
Triangular 1 1/2” flanged connection
-
ATEX certified: || 2 G
-
Max flow rate 84 - 200lpm
-
Must be fitted horizontally
-
Maximum liquid column of 6m
-
Fitted with a wire mesh filter
- ATEX certified anti syphon valve
