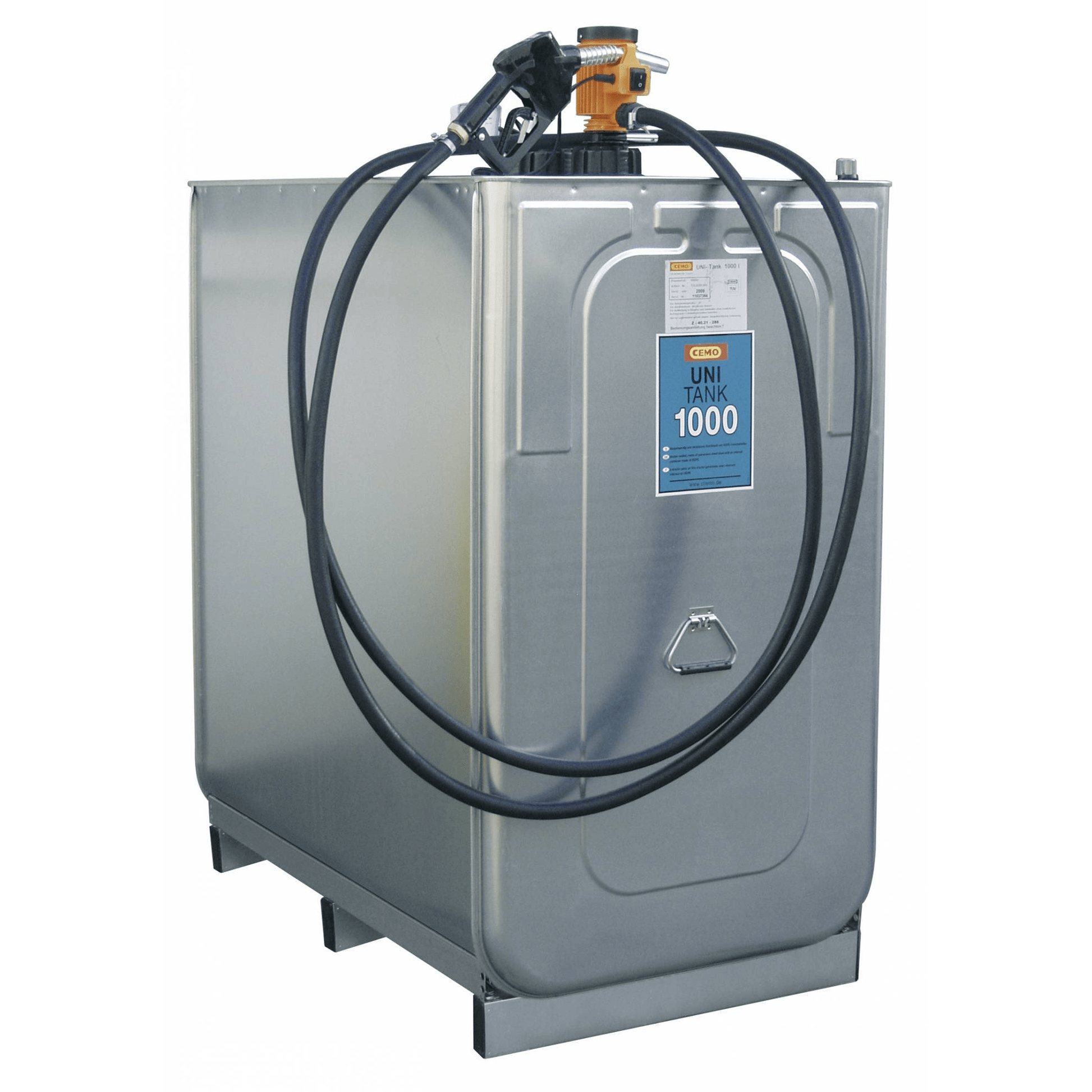

1000 Litre Cemo Uni-Tank Diesel Tank System
Diesel tank system with UNI-Tank 1,000 l
Tank system, completely configuration comprising:
- UNI-Tank 1,000 litres
- filling connection with tanker coupling
- limiting value transmitter
- removal and ventilation line
- electric pump 50 l/min
- without assembly
- electric pump 230 V self-priming with automatic delivery nozzle, delivery nozzle holder, meter, 4 m filling hose and ventilation
- other lengths for filling hose optional
- individual filling of the tanks via fixed tanker connection, removal and ventilation via common lines
UNI-Tank 1000 L, tank from HDPE with general construction inspection approval
Individual tank with integral galvanised sheet steel bund, standard accessories such as filling contents gauge, optical leakage detector device, integral carrying handle, no pump.
For storage of fresh and waste oil with a flash point > 55 °C also approved for indoor installation and in water protection areas without a bund*. Low overall height (up to 1,000 L), thus no steps are required when filling with waste oil.
Particular advantages:
- approved for transport according to the ADR, but without a pump fitted. Examination after 2½ years (see ADR 6.5.4.4.1 b).***
- lower centre of gravity increases stability and improves handling/ transport.
Available Variations:
230V Pump - approx. 35 L/min effective, 4 m connecting cable, 6 m hose, dispensing nozzle
12V Pump - approx. 30 L/min effective, 4 m connecting cable with crocodile clips, 6 m hose, dispensing nozzle
12V Pump auto nozzle - approx. 25 L/min effective, 4 m connecting cable with crocodile clips, 6 m hose, automatic nozzle, auto shut-off nozzle
