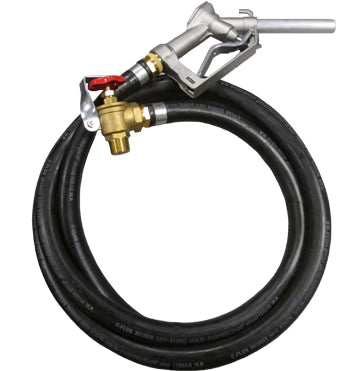

The Annex Gravity Diesel Hose Kit is designed for bottom outlet, gravity fed fuel storage tanks where a straightforward dispensing setup is required. Popular in agricultural settings and widely used across other industries, this gravity diesel hose kit offers an economical alternative to electric or manual pumping systems.
Designed for Gravity Fuel Dispensing
This diesel gravity dispensing kit allows fuel to flow directly from an elevated tank using gravity alone. It is ideal where a pump is not necessary, helping reduce equipment costs while still providing practical, controlled fuel dispensing.
Complete Ready Made Assembly
The kit includes deluxe anti static soft wall hose, a Piusi Self 2000 aluminium manual nozzle, and a 1 inch locking angle valve for controlling fuel flow from the tank. Supplied in a plastic labelled bag, it is ready for straightforward installation.
Durable Anti Static Hose Construction
The hose features diesel and oil resistant construction with an anti static soft wall and NBR cover. Synthetic textile yarn reinforcement adds strength while maintaining flexibility for easy routing from tank to dispensing point.
Secure and Practical Connections
Fitted with 1 inch M BSPT aluminium hose tails and ring ferrules, the assembly ensures a secure connection within your fuel system. The 1 inch M x F locking angle valve provides an added level of control and security, although a padlock is not supplied.
Suitable Sizes and Temperature Range
With an internal diameter of 25 millimetres and an outer diameter of 34 millimetres, this manual diesel dispensing hose supports effective gravity fuel flow. It operates within a temperature range of minus 25 degrees Celsius to plus 70 degrees Celsius.
Flexible Length Options
Available in a range of lengths from 3 metres to 6 metres, the fuel tank gravity hose can be selected to suit different tank heights and installation layouts. Additional lengths are available upon request.
Key Features
-
Diesel and oil resistant construction
-
Annex anti static soft wall hose with NBR cover
-
Synthetic textile yarn reinforcement
-
1 inch M BSPT aluminium hose tails and ring ferrules
-
Piusi Self 2000 aluminium manual nozzle
-
1 inch M x F locking angle valve padlock not supplied
-
Supplied in a plastic labelled bag
-
Internal diameter 25 millimetres outer diameter 34 millimetres
-
Temperature range minus 25 degrees Celsius to plus 70 degrees Celsius
-
Available in different lengths
I’m looking for a diesel gravity hose kit with an automatic nozzle but can’t find one. Is this possible?
Only manual nozzles can be used within gravity fed installations, as the back pressure required for an automatic nozzle to open is unlikely to ever be achieved under gravity conditions. For this reason, gravity hose kits are always supplied with manual nozzles.
Can you use a flow meter with a gravity hose kit?
Yes, you can use a flow meter in a gravity fed installation, however it will only accurately count the fuel dispensed if the minimum flow rate of the meter is continuously achieved. You therefore need to be careful when selecting, as most flow meters’ minimum flow rate will be too high.
