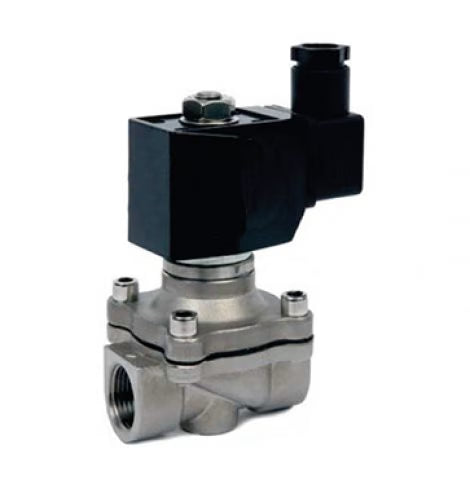

This product is ideal for applications where liquid flow is required only at specific intervals, such as supplying fuel to generators or controlling fluid release through pump systems. With a robust stainless steel construction and Viton diaphragm, this fuel control solenoid valve offers dependable performance in demanding environments.
Direct Acting Operation for Reliable Control
As a direct acting solenoid valve, no pressure is required for operation. When the coil is energised by an electrical current, the valve opens to allow flow, and automatically closes when de-energised to stop liquid movement.
Designed for Controlled Fluid Release
This normally closed solenoid valve is suited to installations where fluids should only flow during system operation, helping improve safety and prevent unwanted leakage or flow between cycles.
Compatible with Multiple Fluids
Featuring a Viton diaphragm, this AdBlue compatible solenoid valve is suitable for use with AdBlue, fuels, water and light oils, making it a versatile option for industrial and commercial fluid handling systems.
Durable Construction and Flexible Power Options
Built from stainless steel with an IP55 protection rating, the valve is designed for long-term use in demanding environments. It is available in both 230v AC and 24v DC versions to suit different system requirements.
Key Features
-
Direct acting normally closed solenoid valve
-
Screwed BSP Parallel FXF
-
Viton diaphragm suitable for AdBlue™, fuels and water
-
Max. Temperature: 80°C
-
Available in sizes ½” to 1”
-
IP55 protection grade
-
Available in 230v AC or 24v DC
-
AC Working Pressure: 10 bar (air), 10 bar (water), 7 bar (light oil)
-
DC Working Pressure: 6 bar (air), 6 bar (water), 4 bar (light oil)
