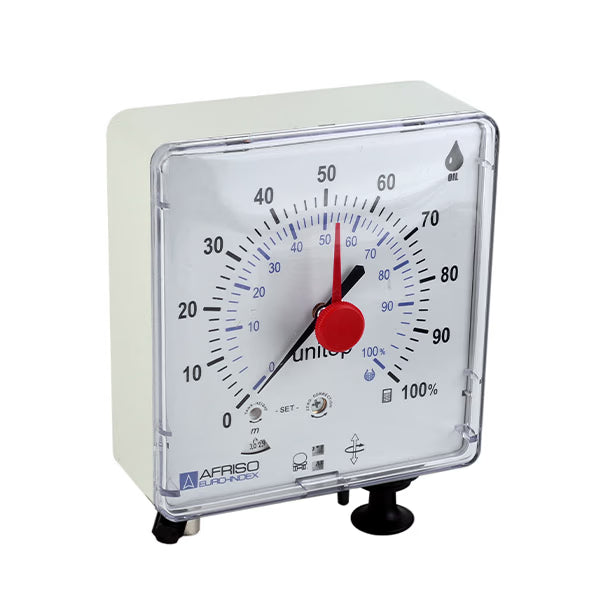

The Unitel Hydrostatic Calibrated Fuel Tank Level Gauge from Afriso Euroindex is a reliable mechanical solution for accurately monitoring stored fuel and fluids. Designed as a calibrated fuel tank contents gauge, it provides a clear litre reading of remaining product, helping operators manage usage and plan timely refills without relying on electrical systems.
Simple Pneumatic Measurement System
This fuel tank level gauge uses a spring loaded plunging mechanism which, when released, allows the needle to settle and display the tank contents. The reading is shown clearly in litres on a large mechanical dial, making it easy to check levels at a glance without complex electronics or power supply requirements.
Highly Versatile Tank Compatibility
As a practical tank level indicator, the Unitel is compatible with horizontal, vertical, cylindrical and rectangular tanks. It can be used on diesel tank installations with heights between 1200mm and 3000mm, and on water or AdBlue tanks up to 2500mm, making it suitable for a wide variety of storage applications.
Adjustable Reference Level for Reordering
The integrated second needle allows users to set a custom level marker, acting as a visual reminder of when to reorder fuel. This makes the diesel tank gauge especially useful for operational planning and preventing unexpected shortages.
Durable Construction and Flexible Installation

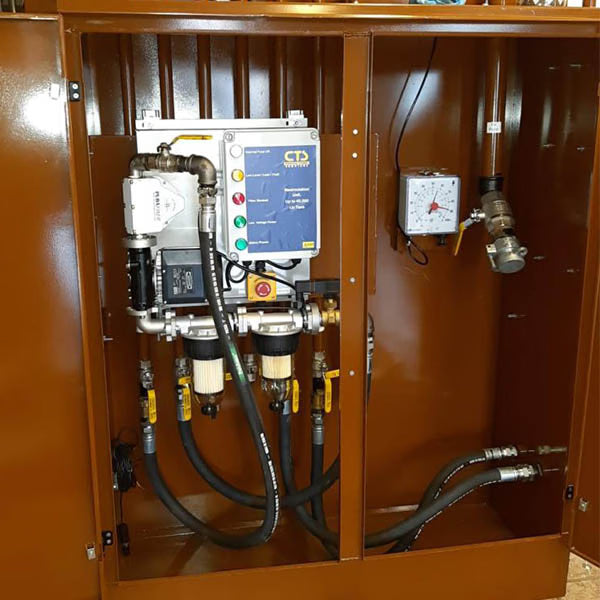

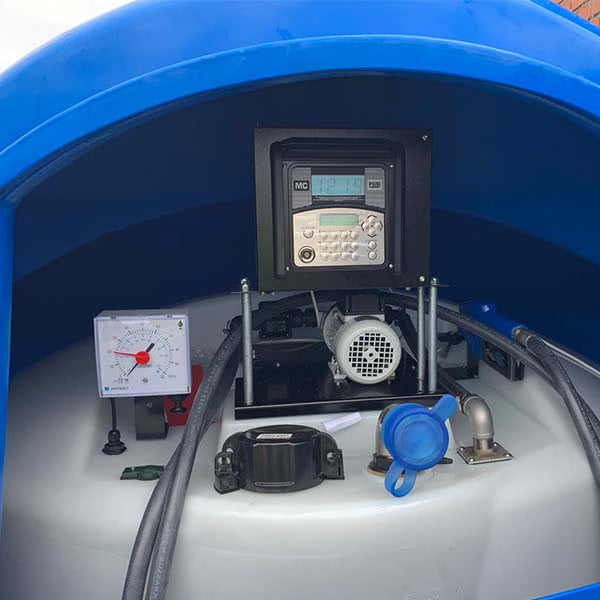

Supplied in an impact resistant casing, the gauge can be mounted directly onto the tank or installed on a nearby wall. It is provided with 20 metres of PVC capillary to support straightforward installation across different tank layouts.
Made to Order Calibration
Each calibrated unit is produced to customer specification to ensure accuracy for the intended tank dimensions. A calibration questionnaire must be completed when ordering, and due to this custom setup there may be a lead time of 5 to 10 working days.
Key Features
-
Pneumatic fuel tank contents gauge
-
Litre reading
-
Spring loaded plunger to pull release
-
1 inch and ½ inch M BSP dual threaded
-
Supplied with 20 metres of PVC capillary
-
For diesel tanks 1200-3000mm height
-
For water AdBlue 1200-2500mm height
-
Accuracy +/-3% at full scale
-
Gauge face 145mm x 135mm
-
For rectangular and cylindrical tanks
-
Suitable for diesel kerosene biodiesel up to B100 water and urea
